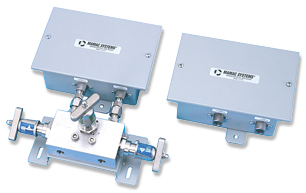

Mamac Differential Pressure Transducer with Manifold

(DN 283.1)

Tech. sheet

(IS PR283)

Features

100% solid-state fused silicon pressure sensors

Rugged, leakproof 17-4 PH stainless steel monolithic pressure cavities with no welds, O-rings, seams, or bonds

Up to 3 field-selectable ranges in a single unit

Wide 12 to 40 VDC/12 to 35 VAC unregulated supply voltage

Two temperature-compensated humidity output versions: 4 to 20 mA 2-wire or field selectable 0 to 5 VDC / 0 to 10 VDC

NIST traceable calibration

Modular 316 stainless steel three-valve monolithic manifold assembly (VM-705)

Rugged NEMA-4 (IP-65) enclosure with external mounting bracket

Short circuit and reverse polarity protected

Conforms to EMC standards EN50082-1/EN55014/EN60730-1
