Concealed Shower Valves Single Stage Thermostatic Model 3000 Series Mixing Valves
Single Stage Thermostatic Valve
w/Wall Trim Rectangular Faceplate
w/Wall Trim Round Faceplate
w/Recessed Wall Trim Round Faceplate

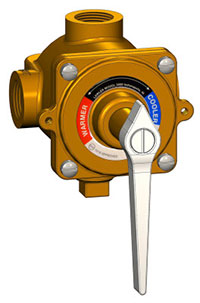

Single Stage Thermostatic
Model: 3000 Series Valves
The Lawler Series 3000® Type T Shower Mixing Valve contains a highly sensitive thermostatic element that automatically responds to higher temperature and pressure variations by precisely proportioning water flow to maintain a constant outlet temperature. The Series 3000® provides anti-scalding and anti-chilling protection through its thermostatically operated valve. The Lawler Series 3000® offers maxium choice, while also providing maximum comfort, for a variety of applications.

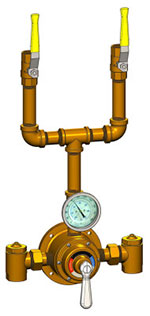

w/Thermometer & Dual Shutoff
w/Thermometer & Shutoff
Single Stage Thermostatic
Model: 4000 Series Valves
The Lawler Series 4000® Type T Shower Mixing Valve contains a highly sensitive thermostatic element that automatically responds to temperature and pressure variations by precisely proportioning water flow to maintain a constant outlet temperature, providing safe and comfortable showering. The Series 4000® features a thermostatically operated valve which protects against scalding and chilling. Lawler's Series 4000® exposed valve body is designed with a flat wall mounting flange so the valve can be easily mounted onto a shower wall, spa tub, or cabinet assembly. The Series 4000® is available in many styles and combinations to meet field requirements in the temperature control of water, offering maximum convenience and flexibility.
Lawler's Model 410® Single Stage Thermostatic Gang Shower Valves
Model: 410 Series Valves
with Thermometer
w/Thermometer in Cabinet
Lawler's Model 410® thermostatic mixing valve (Type T) meets your specification for a small (3/4" NPT) controller for multiple fixtures at point-of-use. The Model 410® Type T Mixing Valve contains a highly sensitive thermostatic element that automatically responds to temperature and pressure variations in hot and cold water lines. The stainless steel piston and liner precisely proportion water flow to maintain a constant outlet temperature and to guard against unexpected hot or cold water spikes. Model 410® precisely controls outlet temperatures to within ±3 degrees with flow rates between 1 to 20 GPM at 45 psi. The Model 410® can be installed with or without cabinet.
Concealed Shower Valves Dual Stage Model 7000 Series Mixing Valves Type T/P
Dual Stage Combination T/P
w/Wall Trim Rectangular Faceplate
w/Wall Trim Round Faceplate
w/Recessed Wall Trim Round Faceplate

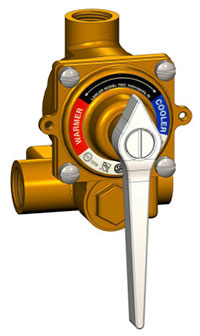

Dual Stage Combination T/P
Model: 7000 Series Valves
The Lawler Series 7000® Type T/P Shower Mixing Valve combines a thermostatically controlled mixing chamber and a pressure balancing chamber into a compact valve body to provide a full range of safety and protection under a variety of circumstances. The Series 7000® features Dual-Stage mixing technology that compensates for normal changes in water pressure and temperature, preventing fluctuations from affecting preset outlet temperatures. The Lawler Series 7000®, designed to be the safest concealed shower valve on the market, provides maximum safety and protection for critical applications. The valve's independent chambers make it a true T/P valve.
|
|
