Kunkle Vacuum Safety Valve |
|

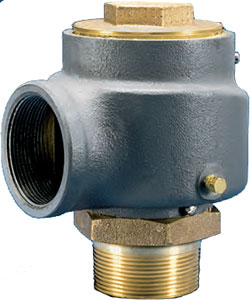

Models 215V and 337, Air/Gas Vacuum Safety Valves |
|
|
Specifications
|
Applications |
Protection of low to medium pressure high volume blowers, compressors and pneumatic conveying systems.
Bulk hauling trailers/equipment.
Light gauge tanks.
Protection of high volume vacuum pumps and conveying systems.
|
Descriptions |
Model 337: has "lift-pin" lift device for easy manual testing.
Model 215V: seal cap for vacuum service
All adjustments are factory sealed to help prevent tampering or disassembly.
Option: Stainless Steel (SS) trim. (nozzle and disc) (variation 03)
|
Vacuum Limits |
Model 215V:
2" Hg to 29" Hg [67.7 to 982 mbarg]
-20° F to 406°F [-29° C to 208°C] |
Pressure and Temp. Limits |
Model 337:
1 to 60 psig [0.07 to 4.1 barg]
-20° F to 406° F [-29° C to 208°C] |
Benefits & Features
- Large nozzle design provides high capacity.
- Flat bronze valve seats are lapped for optimum performance.
- Warn ring offers easy adjustability for precise opening with minimum pre-open or simmer.
- Pivot between disc and spring corrects misalignment and compensates for spring side thrust.
- Model 215V has seal cap for vacuum service.
- Model 337 has 'lift-pin' lift device for easy manual testing.
- Bronze nozzle and disc as standard. Optional SS trim available.
- Each Kunkle valve is tested and inspected for pressure setting and leakage.
|
|
