Future Design Controls

Kiln Control System

Request More Information

Kiln & Pallet Heat Treat
Control System

Future Design Controls Kiln Heat Treat Control System

FDC-2010-K5C Kiln Control System
Easy to Use

Kiln Control System

The FDC-2010-K5C version 2.1 is a Dry Kiln and/or Pallet Heat-Treat controller combined with an operator interface color touch screen.For Pallet Sterilizing the FDC-2010-K5C was designed to meet the ISPM 15 requirements.

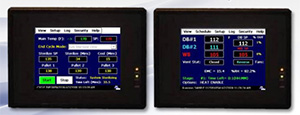

The color touch screen is a 7", 28-oz, industrial PC with embedded Supervisory Control and Data Acquisition (SCADA) software. No external PC software is required for configuration or operation. All Kiln/Pallet Heat Treat data variables are saved to FDC-2010-K5C’s internal memory (2GB SD Card; no hard drive to fail) and is OEM configurable to meet various Kiln and/or Pallet Heat-Treat control needs.

Common Features:

  • Low Cost compared to legacy MRC7000 and newer PC Systems
  • Easy to Use Touch Screen Interface with Help Screens for every view
  • Data Logging all Temperatures
  • Alarm Monitor & Alarm History File
  • Security & Operator Audit Trail
  • LAN: Remote Access, Web Page, SMS/Text Upon Alarm, FTP & More
  • Configurable as Kiln, Heat Treat or Combination Unit
  • Enable only the Required Features

Features: Dry Kiln:

  • Easy to Enter, Edit & Run Schedules
  • All Kiln Data shown on main View; Dry Bulbs, Web Bulb, Vent & Fan Status, EMC Value, etc.
  • Schedule Names 16-Character Alphanumeric
  • Base unit offers up to 4 temperature inputs, 2-dry, 1-wet & 1-core RTD sensors with option of up to 6 additional RTD sensors typically to monitor Core Samples with Dump Cycles
  • Fan Direction Configurable Time & Dwell
  • Digital Input Logic for Multiple Functions
  • KilnView PC Software to Connect to Multiple Kiln Control Systems

Features: Pallet Heat Treat

  • Easy to Operate
  • All Heat Treat Data shown on main View; Chamber Temp, Sterilze SP, Time at SP, Cool down time and Pallets 1-3 current temperature.
  • Control of Chamber Temperature or Lowest Pallet probe
  • Data Log file includes Sterilizer Cycle Information
  • Auto Printout at end of cycle on PC is available
